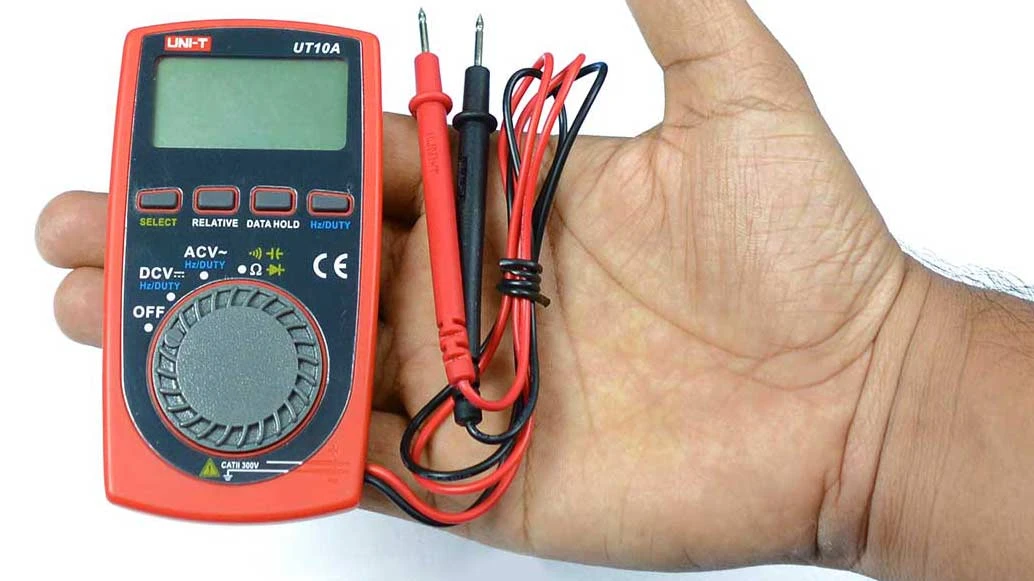

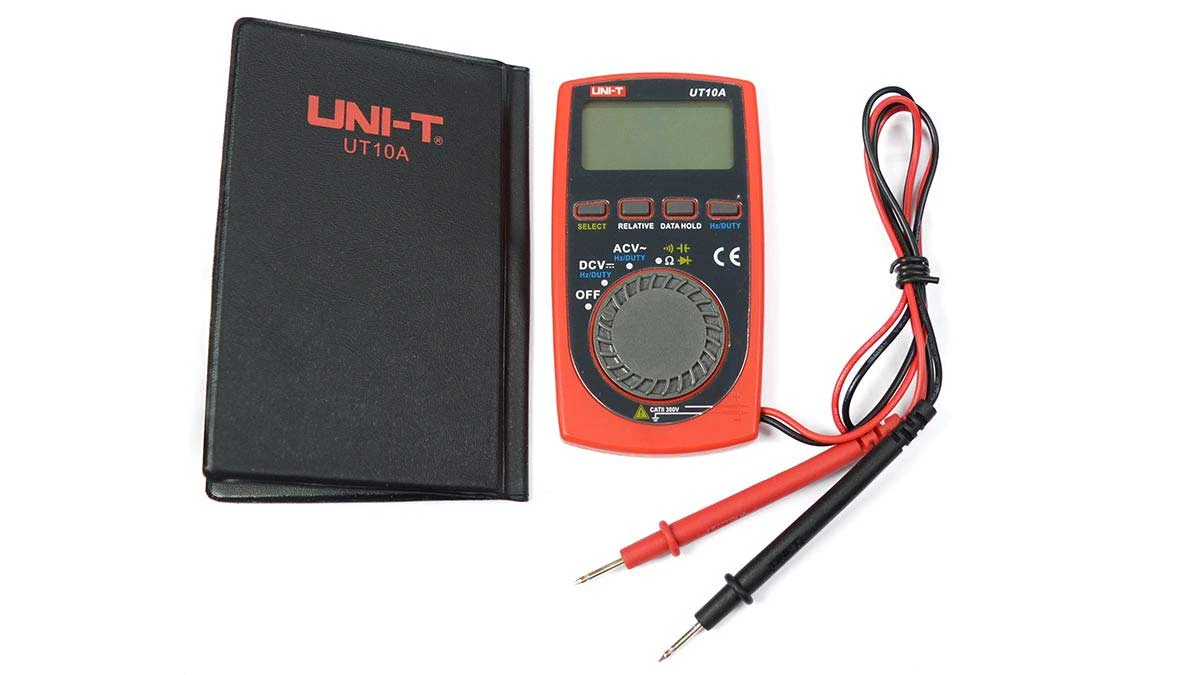

UT10A Palm-Size Multimeter

(0)

68 In Stock

৳1,145
Quantity
Total price: ৳1,145
Tax: incl.
Details description

Digital LCD Palm Size Auto Range Multimeter.

Specification of UT10A Palm-Size Multimeter

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/500V

±(0.8%+1)

AC Voltage

4V/40V/500V

±(1.2%+3)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Capacitance

4nF/40nF/400nF/4µF/40µF/200µF

±(4%+3)

Frequency

10Hz/100kHz

±(0.5%+3)

Special Functions





Auto Ranging



√

Duty Cycle

0.1%~99.9%

√

Diode



√

Continuity Buzzer



√

Relative Mode



√

Data Hold



√

Full Icon Display



√

Sleep Mode



√

Low Battery Display



√

Input Impedance for
DC Voltage Measurement

Around 10MW

√

Max. Display

3999

√

Power

3V Button Battery (CR2032)

LCD Size

43 x 22mm

Product Colour

Red and Grey

Product Net Weight

62g

Product Size

58 x 108 x 12mm

Standard Accessories

Test Lead, Battery, Vinyl Holder
