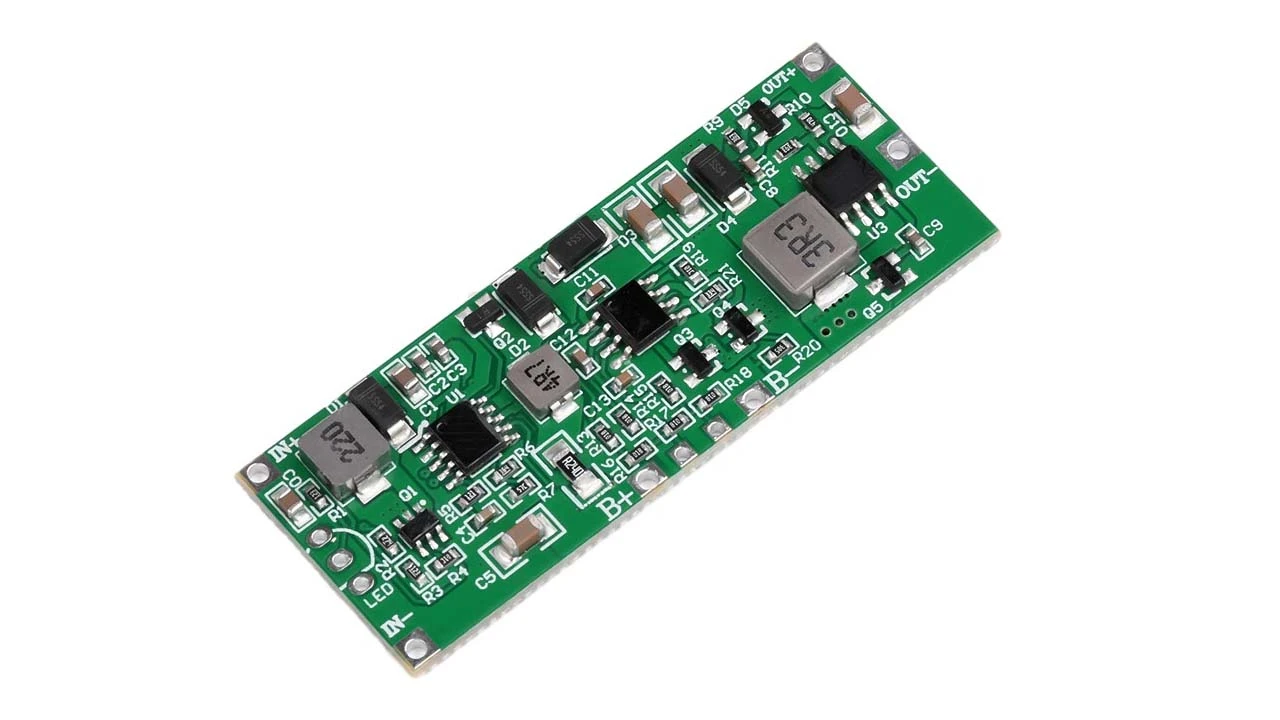

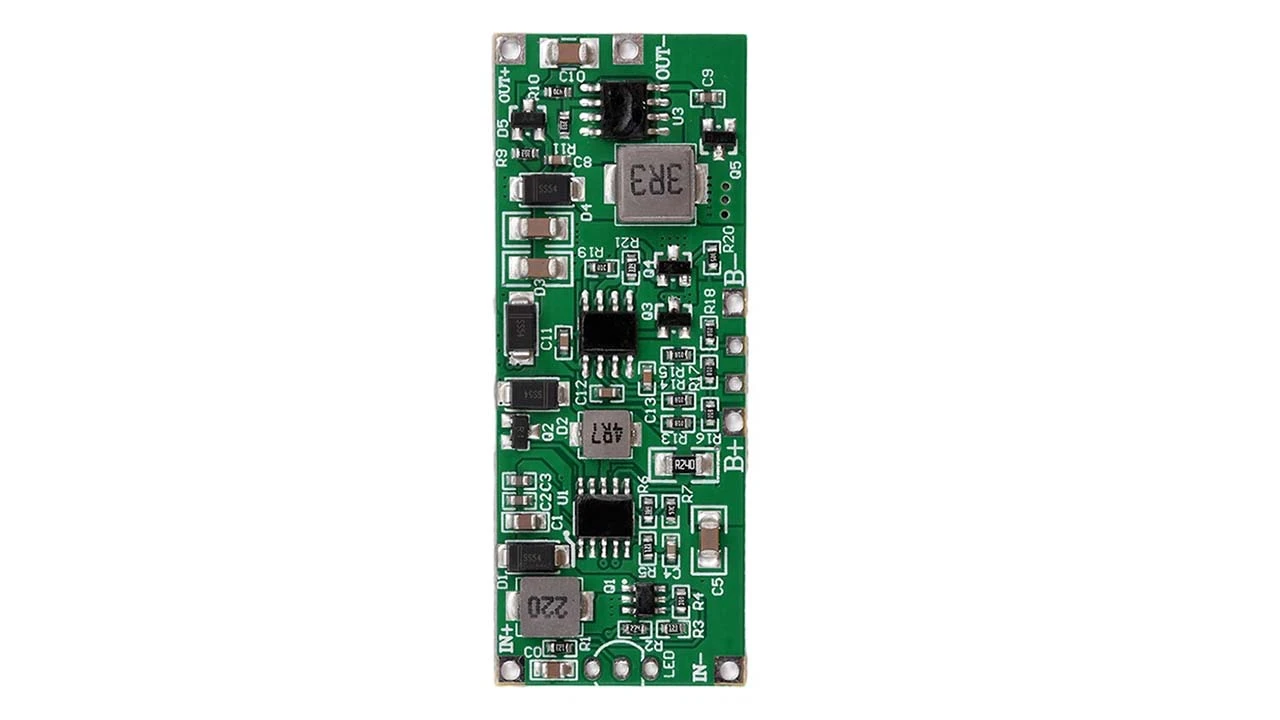

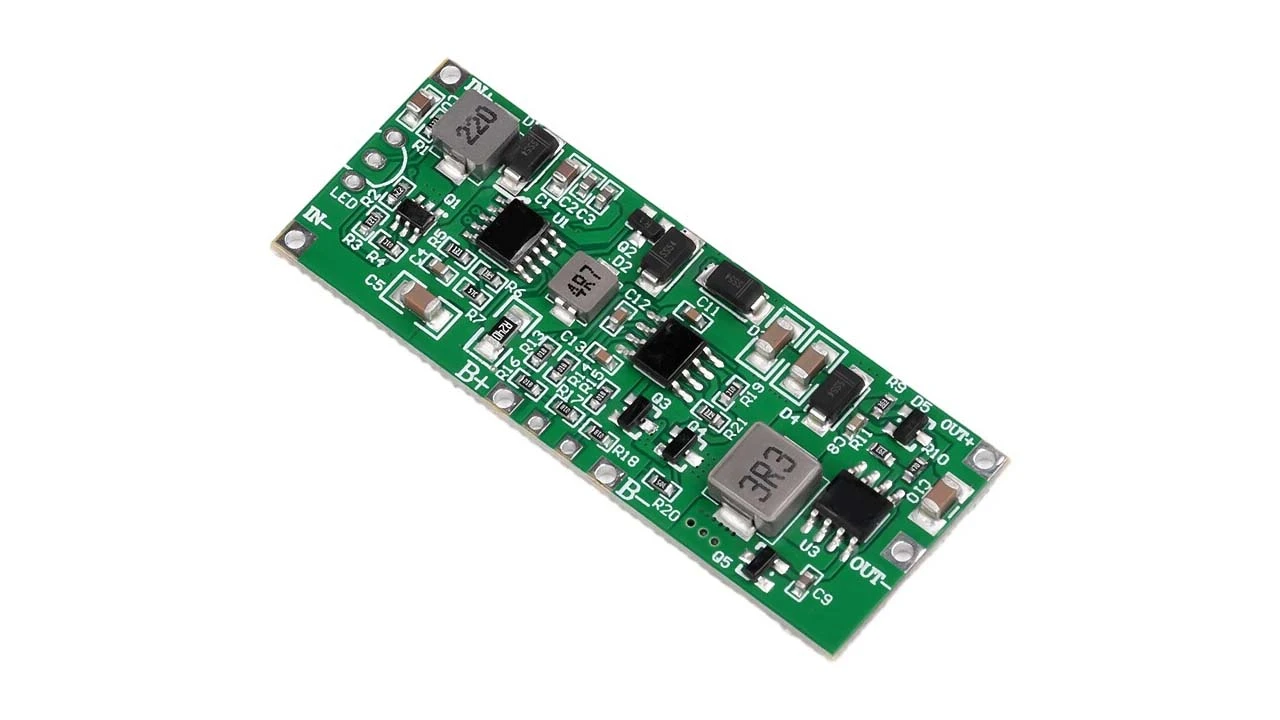

UPS Router Circuit Board DC 12V 1A
This DC 12V UPS control module provides a reliable and uninterrupted power supply for critical electronic devices. When the main power source is lost, the module automatically switches to battery power, ensuring smooth, uninterrupted operation with no reboots or data loss. Engineered for efficiency, compactness, and reliability, this module is a perfect fit for routers, CCTV systems, switches, infrared alarms, and other network equipment.
Key Feature
- Automatically switches to battery power during outages for uninterrupted operation.
- Smooth power transition with no restarts or data loss.
- Supports up to 36W output for multiple low-voltage devices.
- Intelligent battery management with safety protections.
- Compact, efficient design with high-quality components.
- High-performance, efficient board with multi-layer protection.
Technical Specifications:
Parameter | Specification |
|---|
Input Voltage | DC 12V |
Output Voltage | DC 12V (range: 11V – 13V) |
Maximum Output Power | 36W |
Battery Charging Current | Max. 0.5A |
Input Current | Load current + 0.5A (charging) |
Battery Support | 3S Li-ion, Li-Po, or 18650 pack |
Battery Protection | Overcharge, over-discharge included |
Power Switching | Automatic, seamless transition |
LED Indicators | 3mm common anode red-green LED (user-supplied) |
Dimension | 22mm X 57.5mm |
Charging Indicator | Red = Charging, Green = Fully charged |
Applications
- Ideal for routers, modems, and access points.
- Suitable for CCTV and IP camera systems.
- Works with network switches and hubs.
- Power sensors, motion detectors, and alarms.
- Great for DIY, embedded, and 12V backup projects.
