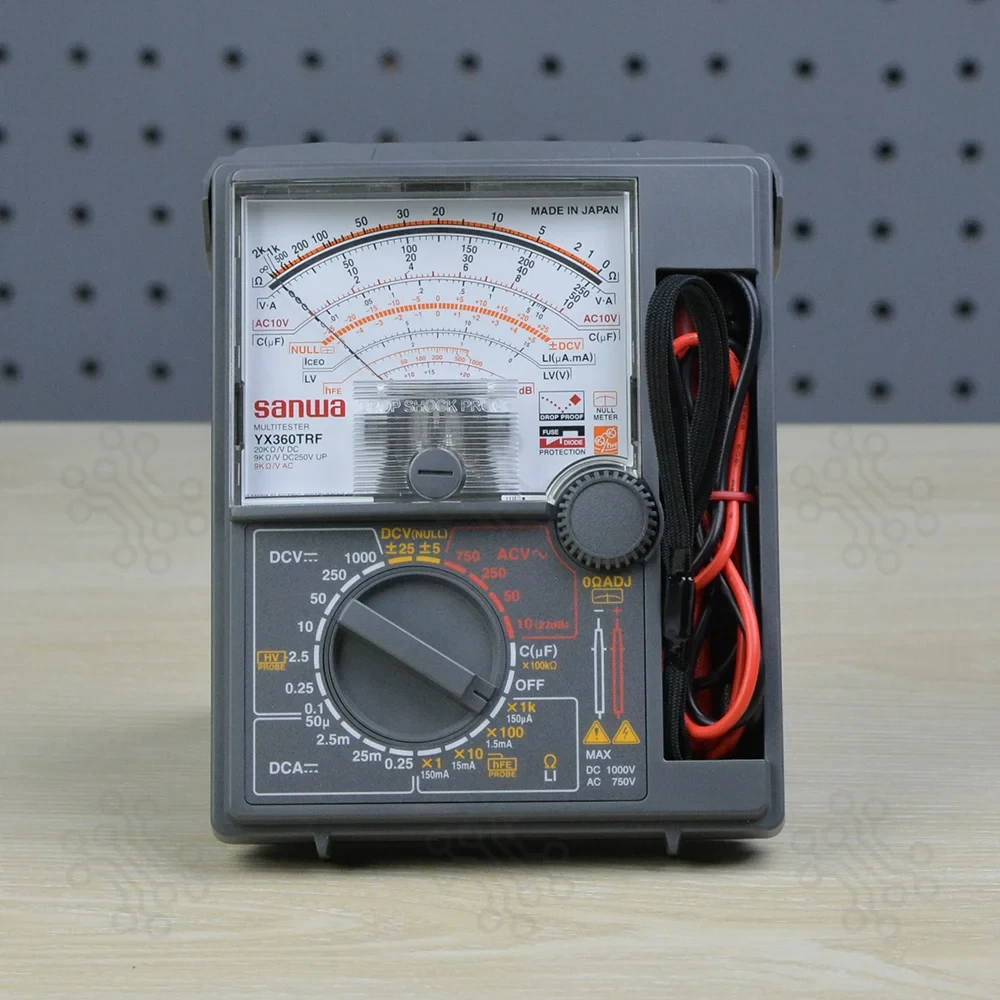

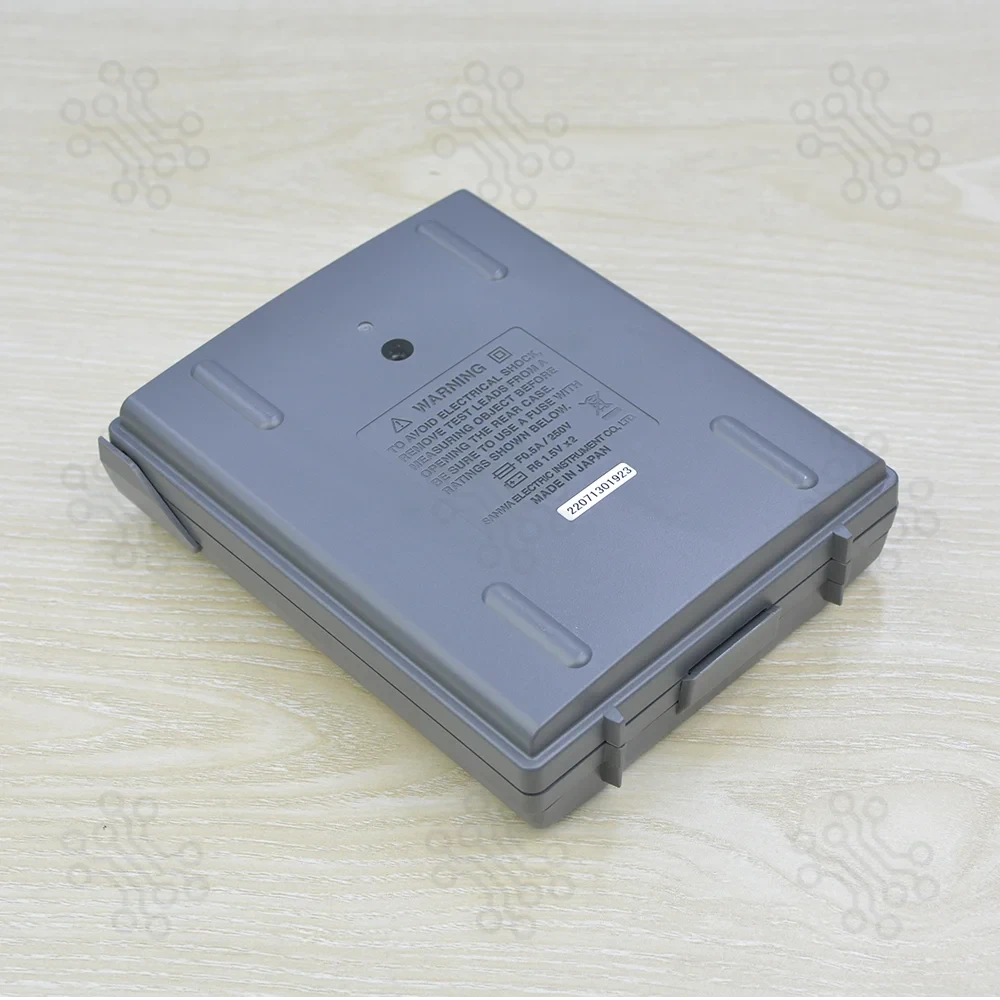

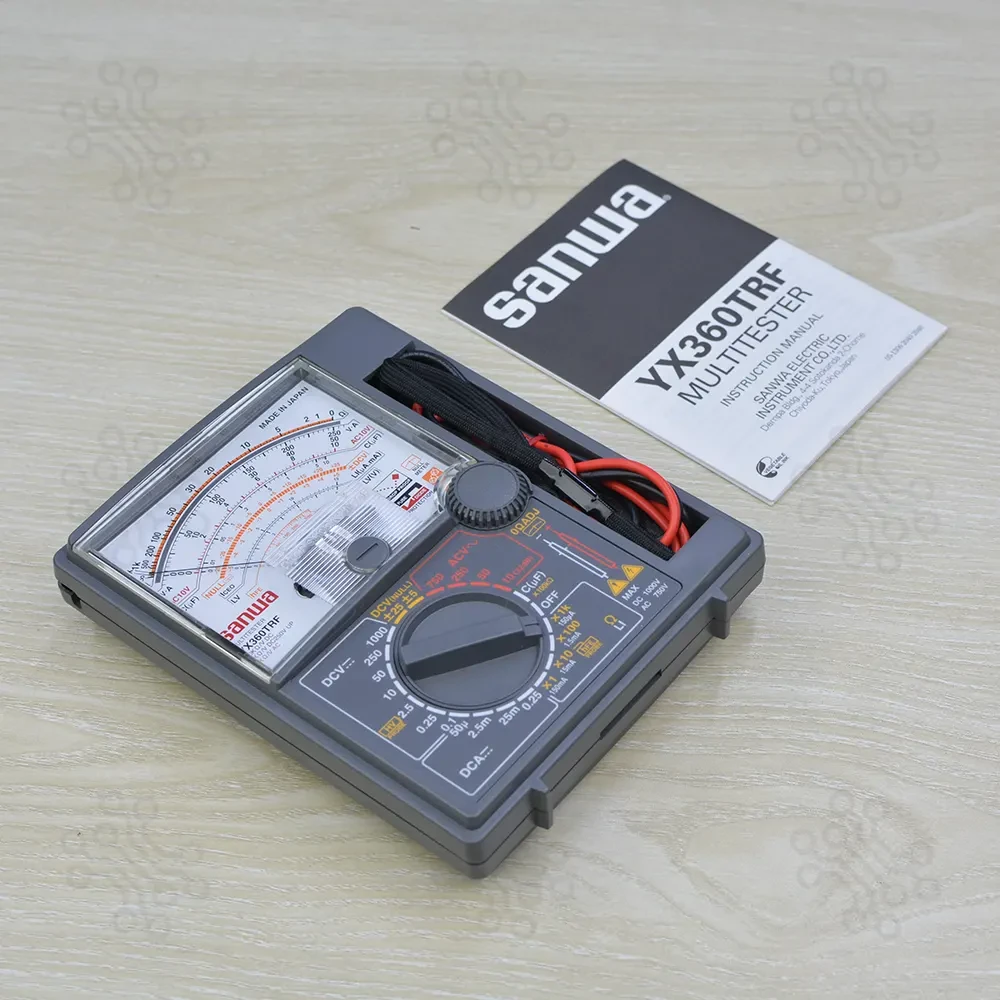

The Sanwa YX360TRF is a portable multimeter designed for measuring low-voltage circuits. Incorporating the latest design technology, it is suitable for measuring home electrical appliances, lamp line voltage, and various types of batteries. The device is housed in a sturdy case, ensuring durability and shock resistance. It features capacitance measurement up to 10μF and resistance measurement up to 200MΩ. Additionally, the test leads can be conveniently stored in the case. Key Features
|
Function | Measuring Range | Tolerance |
|---|---|---|
DC Voltage (DCV) | 0.1V (20kΩ/V), 0.25/2.5/10/50V (20kΩ/V), 250/1000V (9kΩ/V) | ±5% of full scale, ±3% of full scale |
DC Voltage (NULL) | ±5/25V (40kΩ/V) | ±5% of full scale |
AC Voltage (ACV) | 10/50/250/750V (9kΩ/V) | ±4% of full scale |
DC Current (DCA) | 50μA/2.5mA/25mA/0.25A | ±3% of full scale * |
Resistance | 2k/20k/200k/2MΩ (x1/x10/x100/x1k), 200MΩ (x100k) | ±3% of arc, ±5% of arc |
Capacitance | 10μF | Approximate value |
Decibel (dB) | -10dB to +22dB (for 10VAC) to +62dB | Approximate value |
Load Current (LI) | 0-150mA/15mA/1.5mA/150μA/1.5μA | Approximate value |
DC High Voltage | DC 25kV (requires optional probe "HV-10T") | - |
hFE | 1000 at x10 range (requires optional probe "HFE-6T") | - |
Note:
※ The value in ( ) at DCV and ACV is the input resistance.
*1 Not including the resistance of the fuse.
Applications
- Electronics
- Home appliances
- Battery testing
- Automotive diagnostics
- DIY projects
- Industrial maintenance
