LILYGO T-ETH Lite ESP32-S3 Camera Shield H683

The Camera Shield H683 is a versatile expansion module designed for the T-ETH Lite development board. This shield enhances the board’s functionality by integrating camera support, making it ideal for IoT, surveillance, and machine vision applications. Equipped with robust connectivity options, the module supports both wired (Ethernet) and wireless (Wi-Fi and Bluetooth) communication.

Key Features

• Camera Compatibility - Supports OV2640 (2MP) and OV5640 (5MP) cameras, delivering crisp, high-quality images for a variety of applications.
• Ethernet Connectivity - Equipped with a W5500 Ethernet module, offering robust, high-speed, and reliable data transmission.
• Wireless Communication - Dual-mode Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) provide versatile and stable wireless connections.
• Power over Ethernet (PoE) - Supports optional PoE shields, simplifying power management by delivering both power and data over a single Ethernet cable.
• Flexible Programming - Works with ESP-IDF and Arduino IDE, offering developers flexibility and ease of customization.

Technical Specifications

Applications

• Surveillance Systems - Perfect for IP camera setups and security monitoring.
• IoT Projects - Capture and transmit real-time images or video streams effortlessly.
• Machine Vision - Automate tasks like object recognition and process monitoring with precision.
• Multimedia Devices - Create smart, photo- or video-capturing devices for a variety of uses.

Getting Started

1. Hardware Setup
   Attach the LILYGO T-ETH Lite Camera Shield to the T-ETH Lite development board securely.
2. Camera Installation
   Connect a compatible camera module (OV2640 or OV5640) to the dedicated port on the shield.
3. Power Supply
   Use a 5V USB input or a PoE-enabled Ethernet connection.
4. Software Configuration
   Program the board using ESP-IDF or Arduino IDE with the necessary libraries and drivers.
5. Network Setup
   Configure Ethernet or Wi-Fi settings for seamless connectivity.

Additional Resources

• LILYGO T-ETH Series Documentation and Code

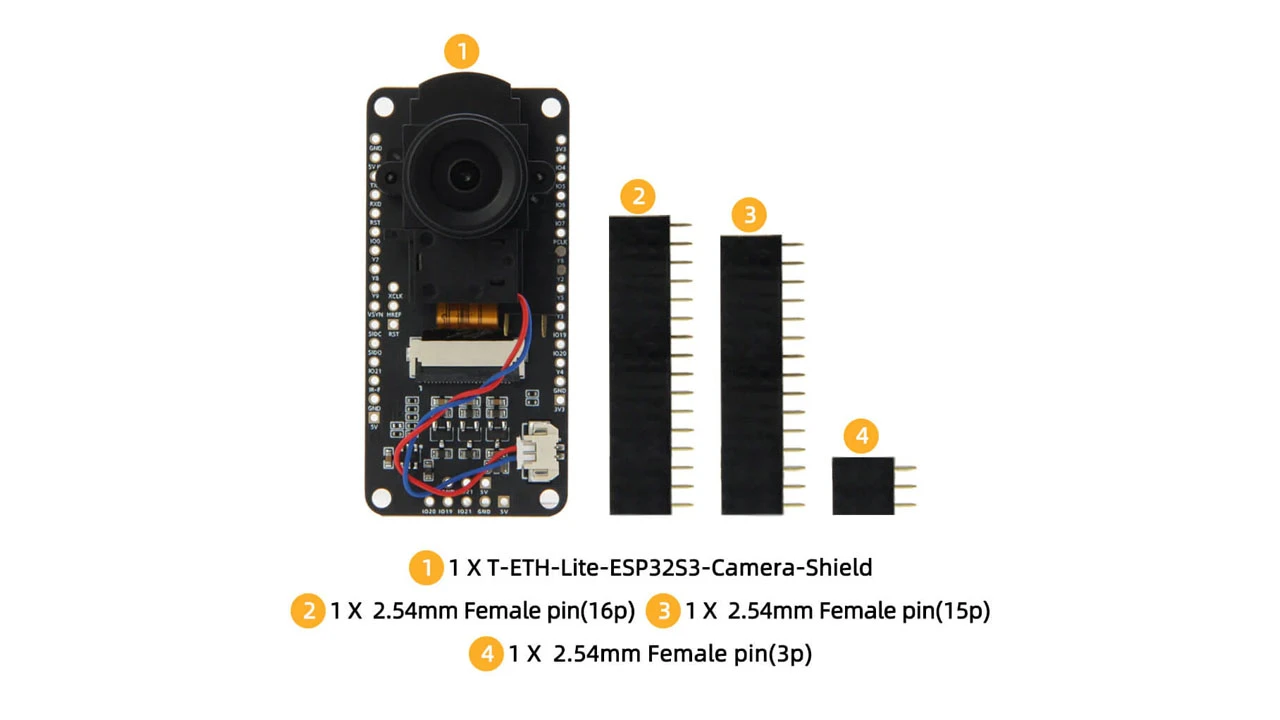

Packaging Details

•  1x LILYGO T-ETH Lite ESP32-S3 Camera Shield H683
•  1x 3 Pin Fimale Header
•  1x 15 Pin Female Header
•  1x 16 Pin Female Header
