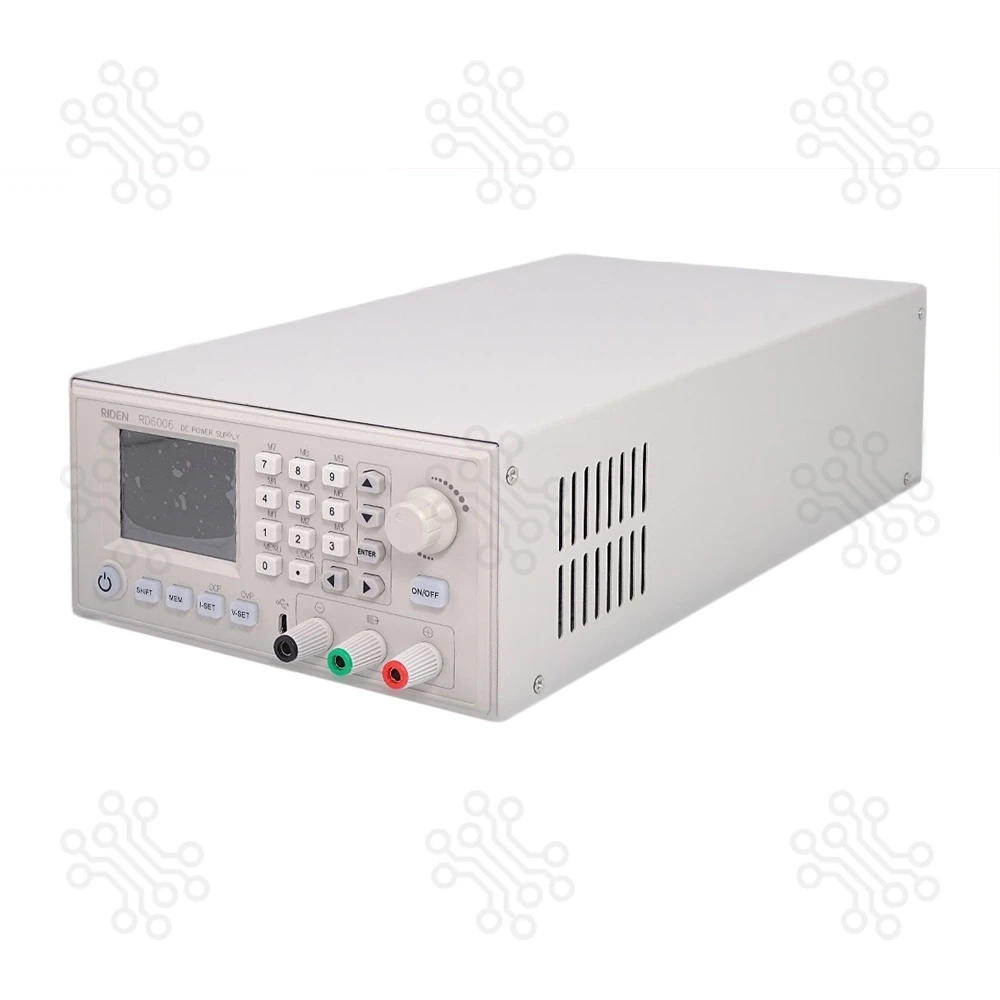

The RD6006-W is a high-precision, programmable DC-DC buck converter and laboratory-grade power supply capable of delivering up to 60V and 6A with 360W maximum output power. With both USB and Wi-Fi connectivity, it provides remote control and real-time monitoring for advanced testing and development environments.
Engineered for versatility and ease of use, the RD6006-W features a 2.4-inch color LCD, fine control via rotary encoder, and precise measurement resolution. Ideal for use in labs, R&D, electronics repair, DIY projects, and power supply design, this unit enables users to convert high-voltage DC input to a regulated output with adjustable voltage and current limits.

Key Features

• 2.4" full-color LCD screen for real-time data display and configuration
• USB and Wi-Fi connectivity for remote control and PC integration
• High precision output: 0–60.00V and 0–6.000A with fine-tuned step resolution
• Adjustable via rotary encoder for ease of use
• Built-in safety protections and monitoring features
• Supports capacity (Ah) and energy (Wh) measurements
• External temperature sensor support with live display
• Compact and efficient buck-mode power regulation
• Pre-assembled casing and power supply included in the package

Technical Specifications

Document

• Please click the link

Applications

• Laboratory-grade power supply setups
• DIY and maker power projects
• Battery charging and testing
• LED strip and device powering
• Product development and testing
• Automotive electronics diagnostics
• Precision DC voltage source for embedded systems

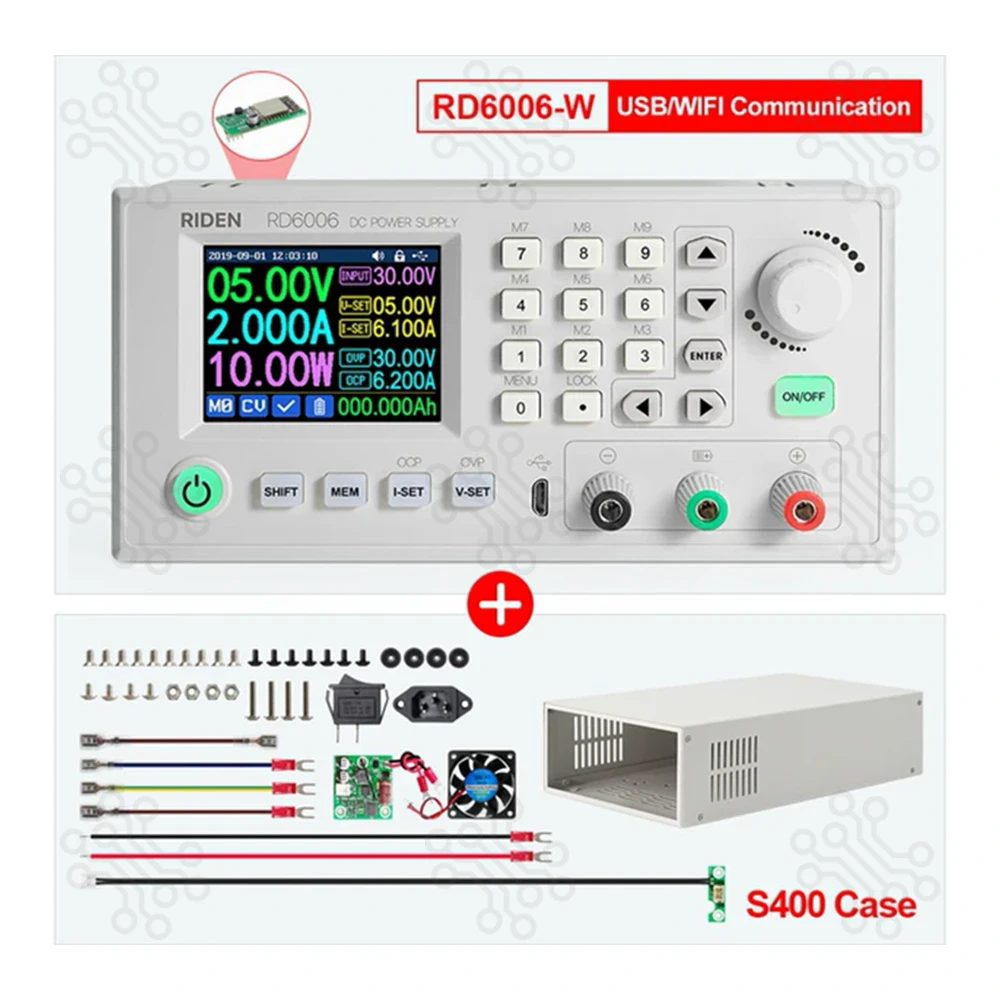

Package Contents

• 1 × RD6006-W Control Unit

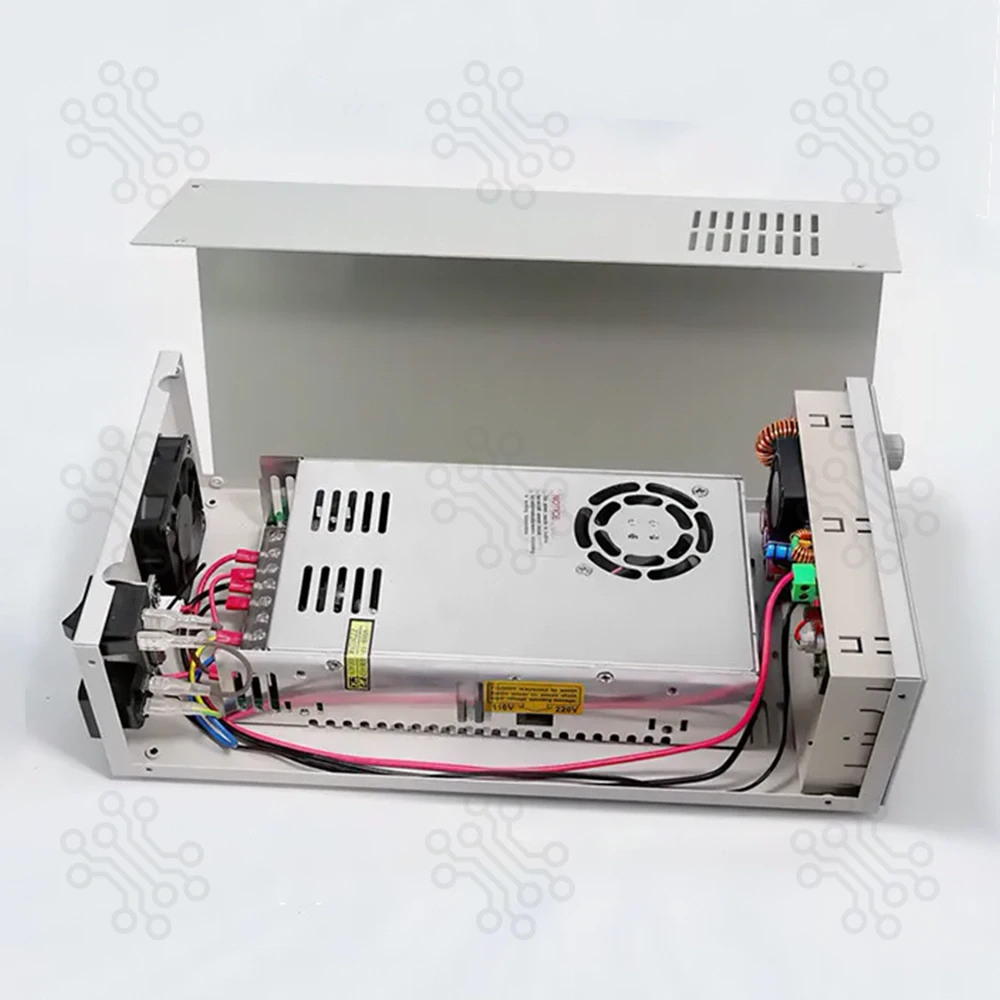

• 1 × S400 Metal Casing (Pre-assembled with accessories)
• 1 × 400W 65V DC Power Supply (Pre-assembled)
• 1 × Wi-Fi Module
• 1 × Fuse
• 1 × Pair of Fork Terminals (U-type)
• 1 × Power Cable
• 1 × Pair of Test Probes
• 1 × Temperature Sensor Probe
• 1 × Extra Screws
