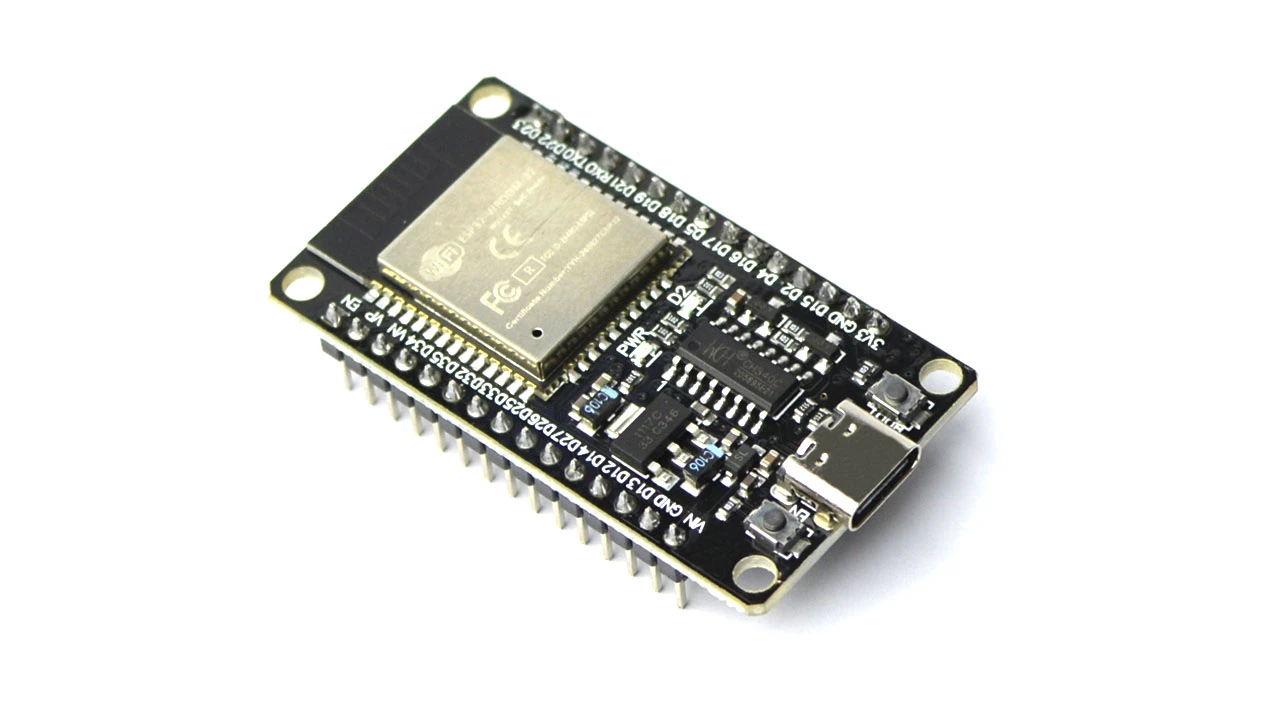

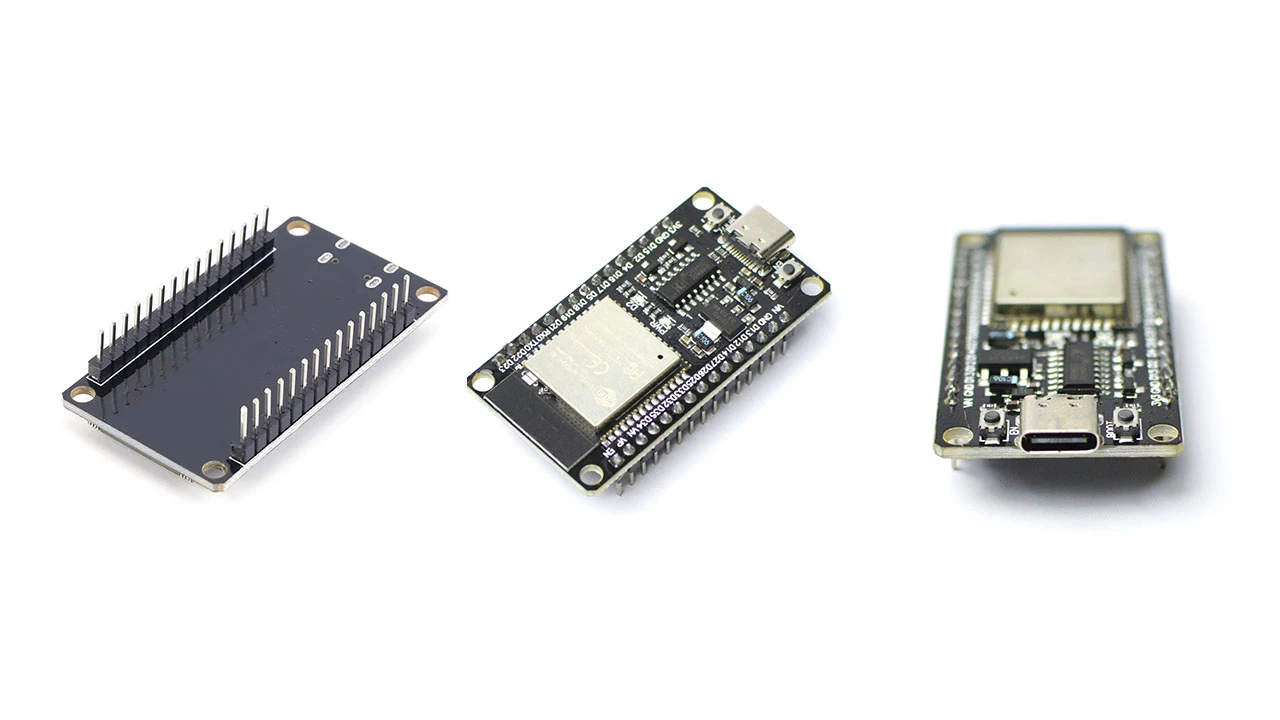

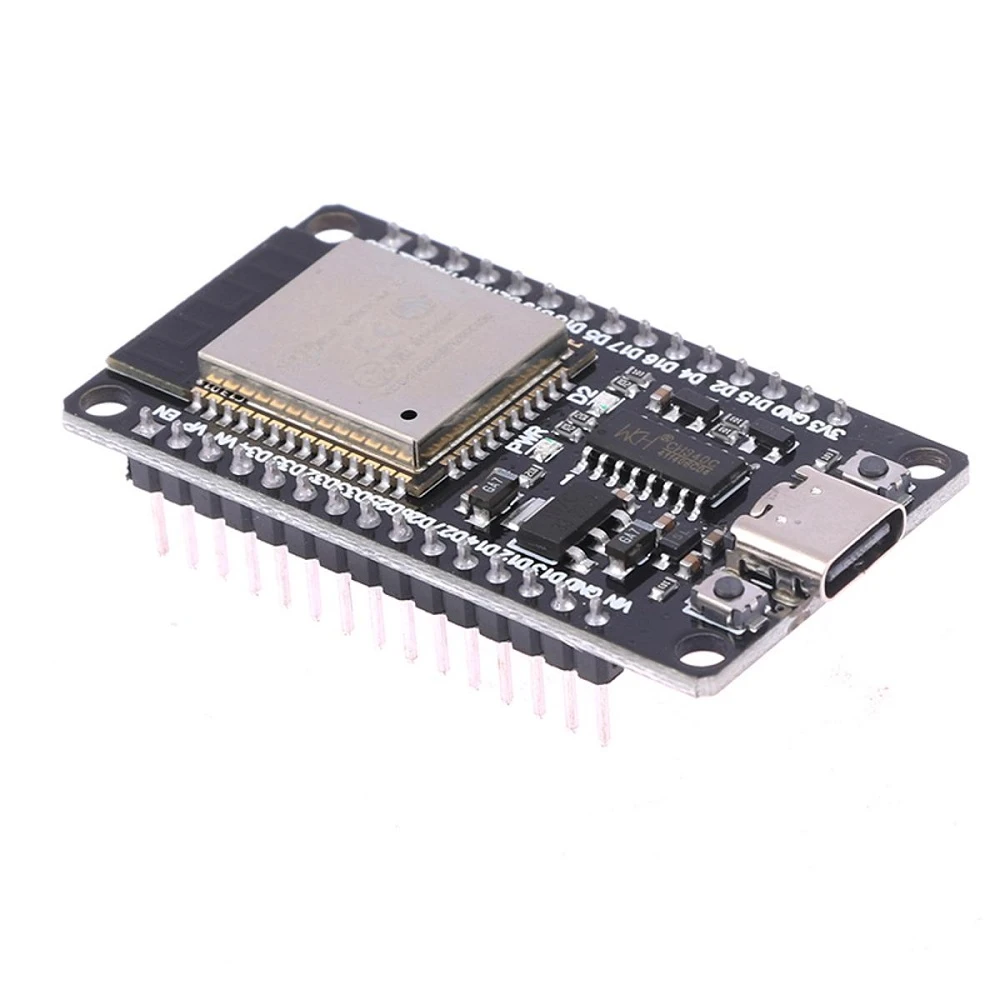

ESP32 Development Board DEVKIT V1

ESP32 Development Board DEVKIT V1 is the most familiar development board to evaluate the ESP-WROOM-32 module. It is based on the ESP32-Microcontroller with built-in Wi Fi and Bluetooth features in a single chip.

Special Features

• ESP-WROOM-32 32-bit 240 MHz microprocessor
• Supply Voltage: 5V
• 2.4 GHz Wi-Fi
• Bluetooth 4.2
• 4 MByte (32Mbit) SPI Flash
• 448 KB ROM
• 520 KB SRAM
• 16 KB SRAM in RTC
• PCB Antenna
• Reset and User/Firmware buttons
• User and Power LED
• USB C Type
• Virtual USB port provided by CH340C for debugging and firmware upgrade
• Assembled with ESP-WROOM-32 module
• Dimensions: 51.5 x 28.5mm

Power Supply

ESP32 DEVKIT V1 can be powered using on-board MicroUSB-Connector or directly via the "Vin" pin. The power source is selected automatically by the device.

The device may operate with external power of 6V to 20V DC. If you are using input power more than 12V, on-board voltage regulator may overheat and damage the device. The recommended range is 7V to 12V DC.
