ESP01 ESP8266 Serial WiFi Transceiver Programmer Adapter

(0)

66 In Stock

৳275
Quantity
Total price: ৳275
Tax: incl.
Details description

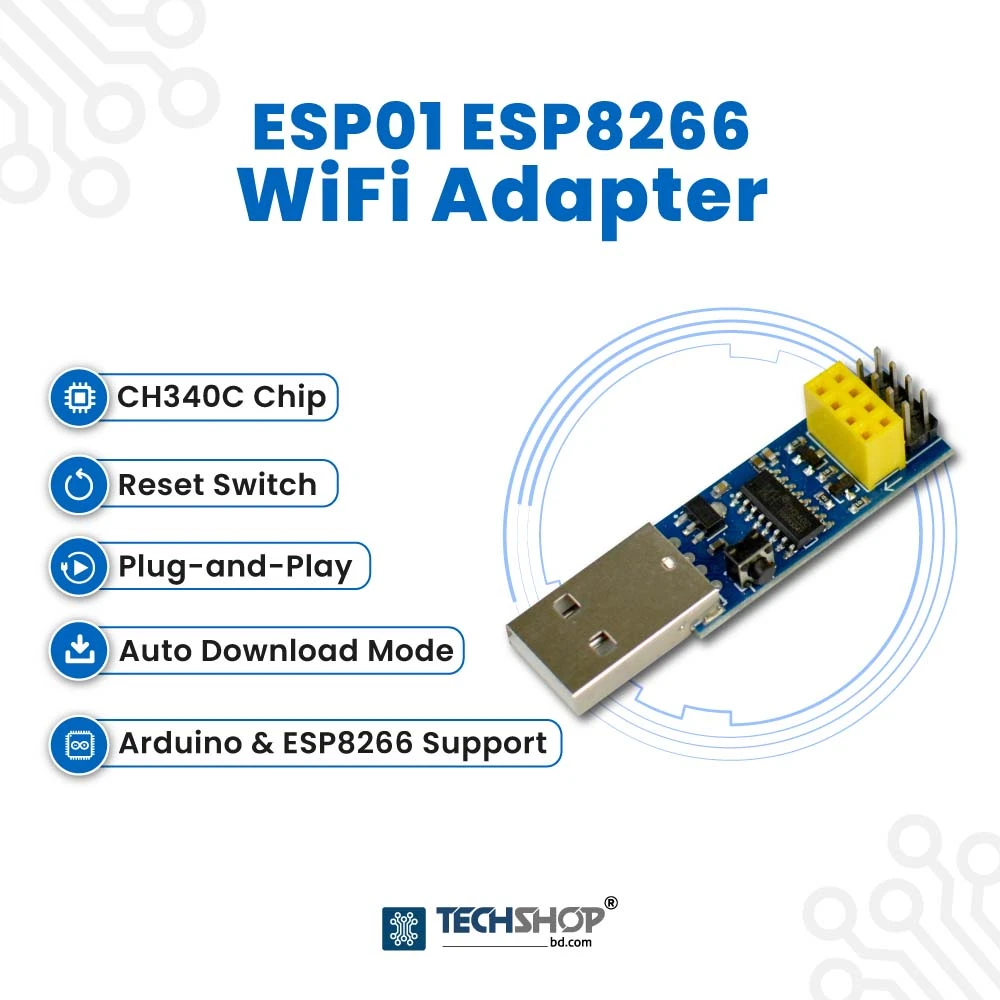

ESP01 ESP8266 Serial WiFi Transceiver Programmer Adapter

The ESP01 WiFi Transceiver Programmer Adapter is an advanced device designed to simplify the programming and debugging of ESP8266-based ESP01 WiFi modules. It is equipped with a CH340C USB-to-serial chip and an automatic download circuit, providing seamless integration with popular programming tools without the need for manual switching.

Key Features

  • CH340C chip ensures stable serial communication
  • Automatic download mode eliminates the need for button pressing
  • Reset switch for quick and easy resets
  • Supports Arduino IDE, Ai-Thinker ESP8266 Flasher
  • Plug-and-play design, no wiring hassle
  • Compact and portable form factor

Technical Specifications

 FeatureSpecification

USB-to-Serial Chip

CH340C

Supported Boards

ESP-01, ESP-01S

Operating Voltage

3.3V (regulated output)

Input Voltage

5V (via USB interface)

Compatibility

Windows, macOS, Linux

Reset Button

Available

Applications

  • IoT projects and wireless sensor networks
  • Firmware updates and serial debugging
  • Prototyping and rapid development
  • Smart home and automation systems

Usage Instructions

  • Insert the ESP-01 module into the adapter socket.
  • Connect the USB interface to a computer.
  • Install the CH340C driver (if not already installed).
  • Open Arduino IDE or supported flasher software.
  • Upload code or firmware directly without pressing any buttons.
  • Use the reset button if necessary.

Packaging Details

1 x ESP01 ESP8266 Serial WiFi Transceiver Programmer Adapter
