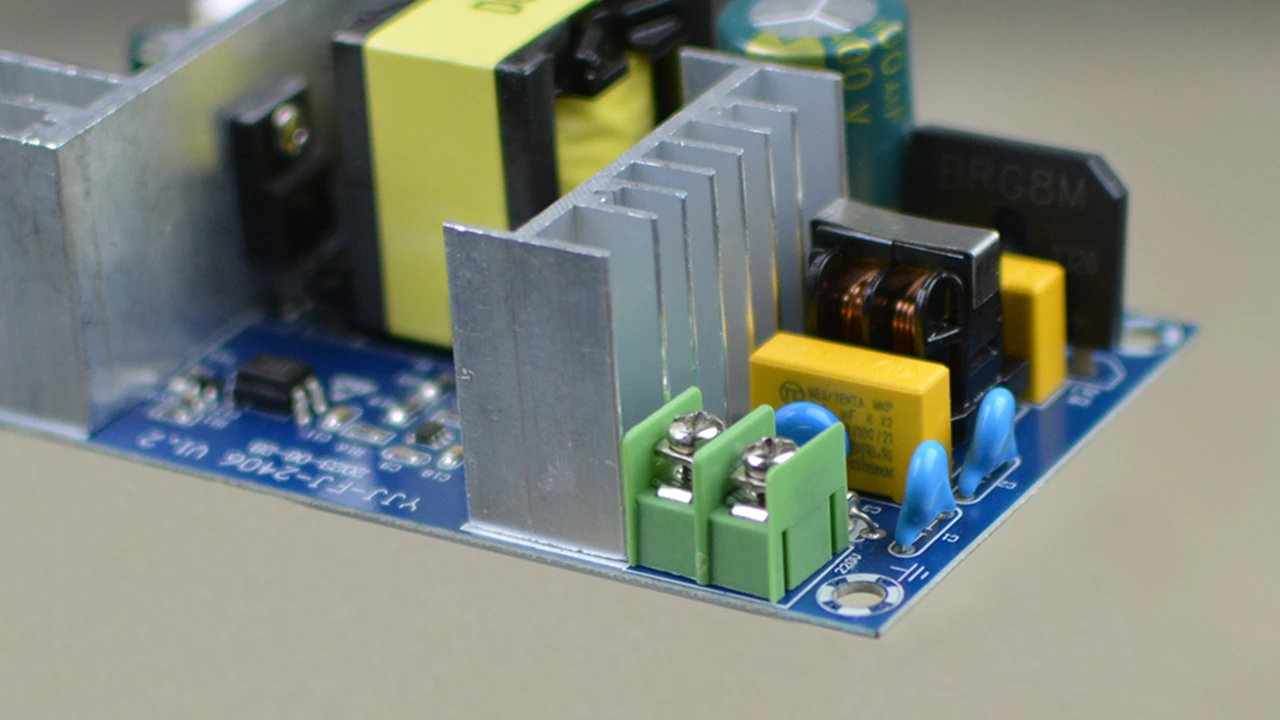

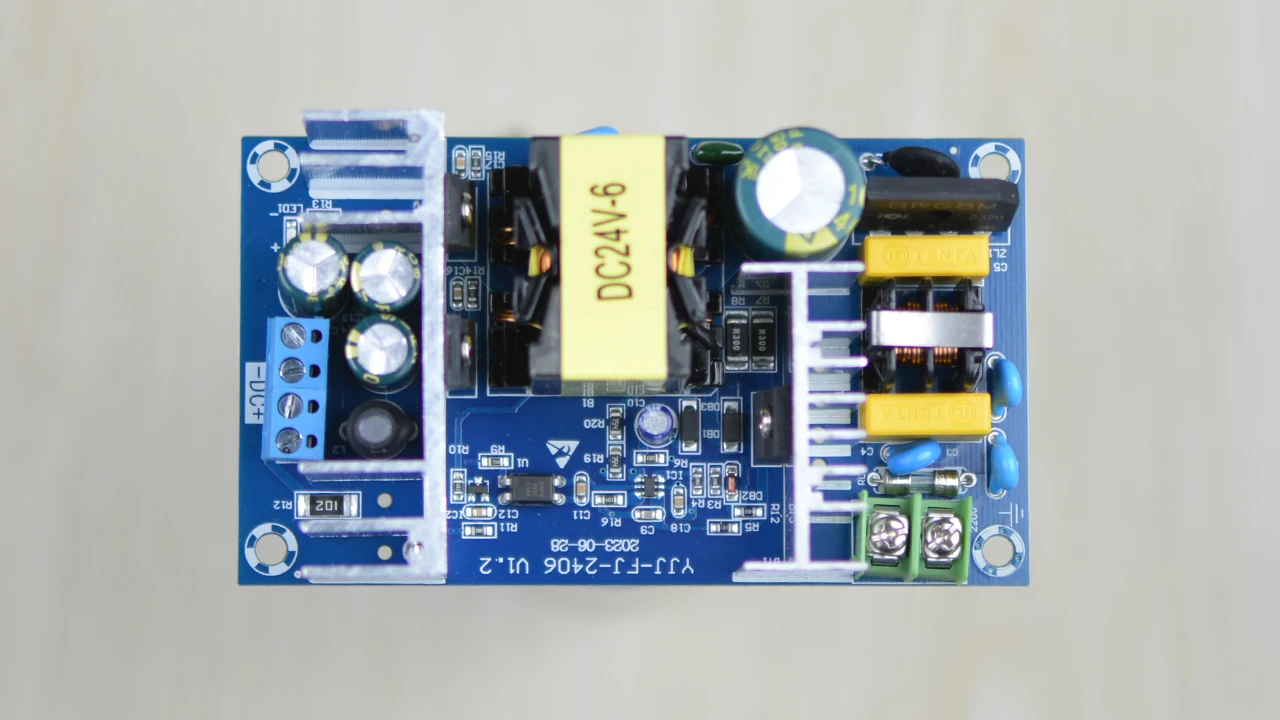

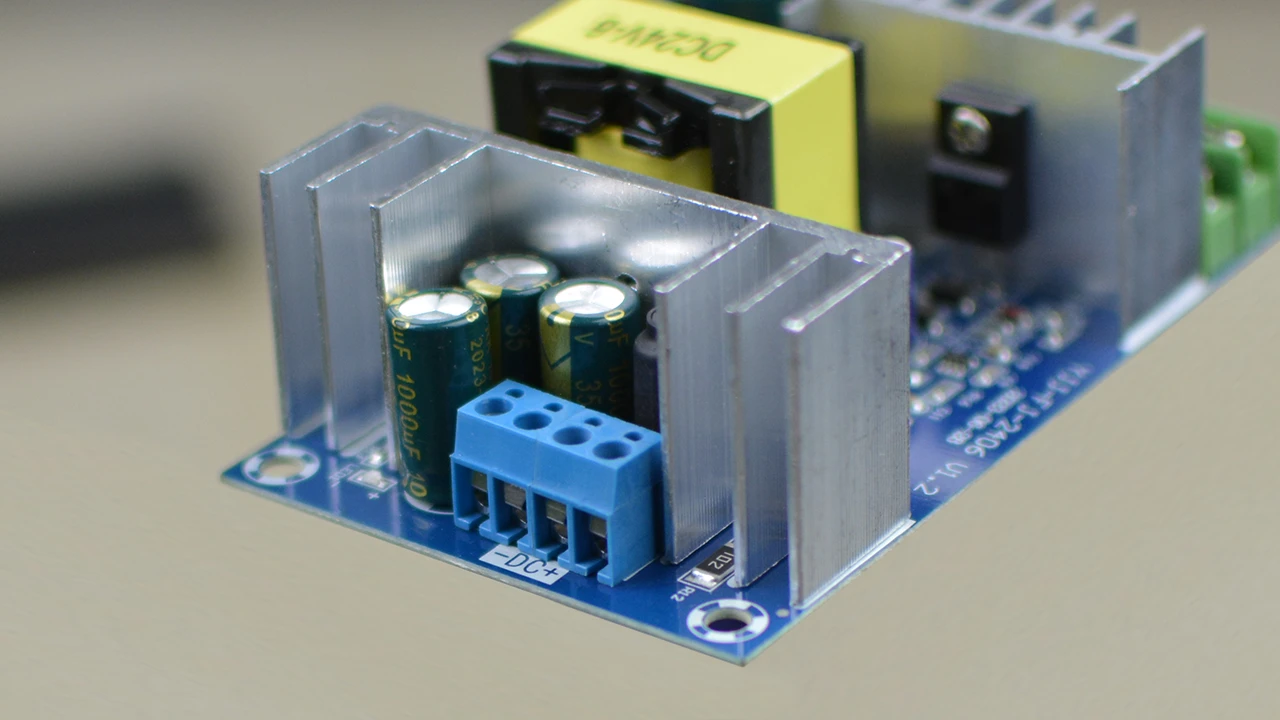

Do you need a constant 24V DC power supply for your project? If yes, then this module is for you. Give 220V AC input and get 24V 6A output from this AC-DC power supply module.
Specification:-
| Type: | Switching Power Supply Board |
| Protection: | Over-voltage, Over-current, Short Circuit Protection |
| AC Input: | AC100 - 240V |
| AC Frequency: | 50Hz / 60Hz |
| Output Voltage: | DC24V |
| Output Current: | 6 - 9A (No Buck) |
| Output Power: | 150W (Maximum 220W) |
| Dimensions: | 11.5 x 6.5cm / 4.5 x 2.6in |
| Positioning Hole Size: | 10.58 x 5.57cm / 4.2 x 2.2in |
| Output Ripple: | < 150MV |
| Material: | PCB |
| Weight: | Approx. 200g / 7.1oz |
| Size: | Approx. 11.5 x 6.5 x 3cm / 4.5 x 2.6 x 1.2in |
| Package List: | 1 x Switching Power Supply Board |
Quality Check (QC) Report by TechShopBD
- Input Voltage: 220V to 250V AC
- Output Voltage: 24V (±1)
- Test Output Current: 6A
