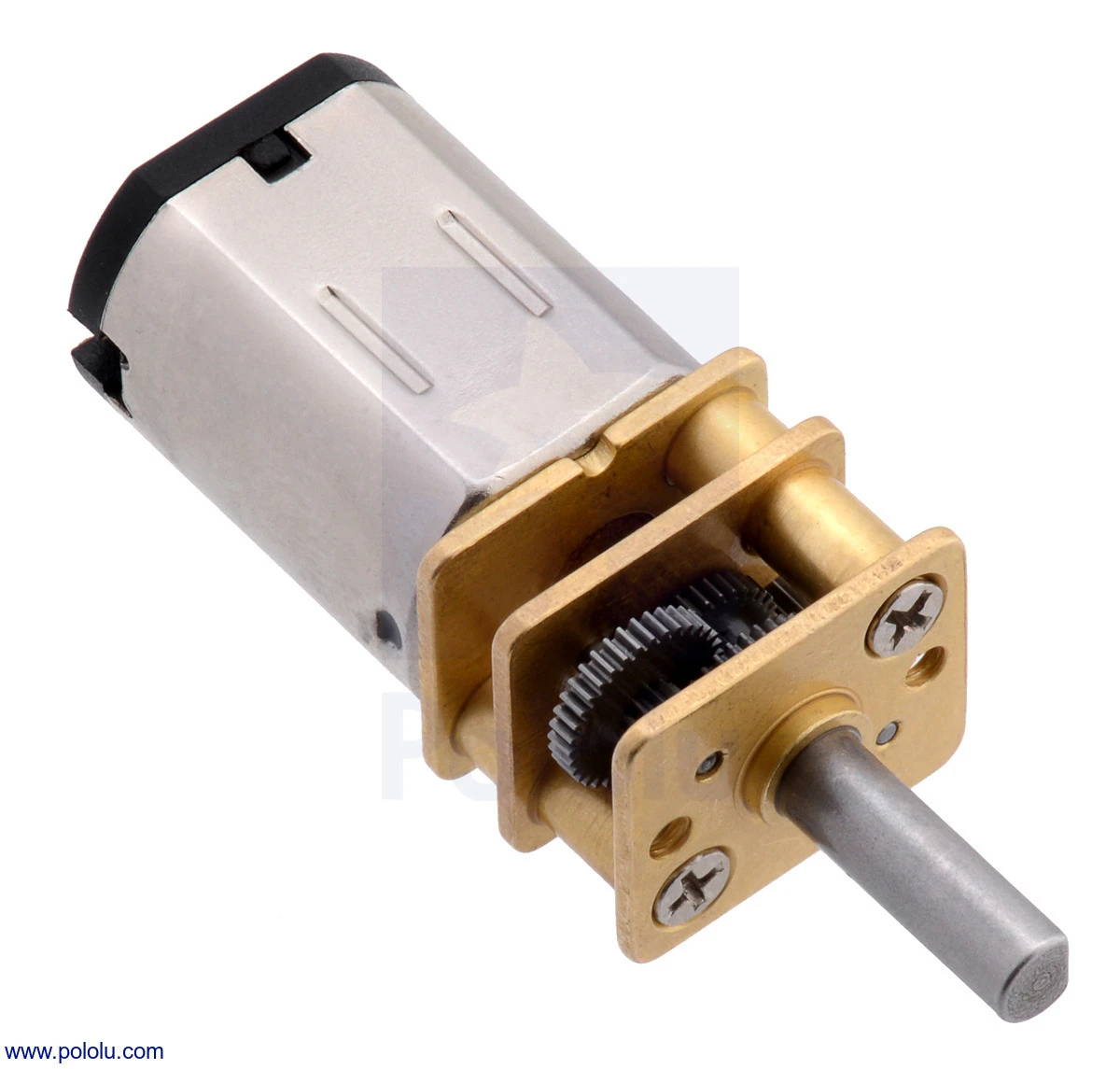

These small brushed DC gearmotors are intended for use at 6 V, though in general, these kinds of motors can run at voltages above and below this nominal voltage, so they should comfortably operate in the 3 – 9 V range (rotation can start at voltages as low as 0.5 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.
For further information,please visit this page .
- Size: 24 x 10 x 12 mm
- Weight: 0.34 oz
- Shaft diameter: 3 mm
- Gear ratio: 10:1
- Free-run speed @ 6V: 3000 rpm
- Free-run current @ 6V: 120 mA
- Stall current @ 6V: 1600 mA
- Stall torque @ 6V: 4 oz·in
- Extended motor shaft?: N
