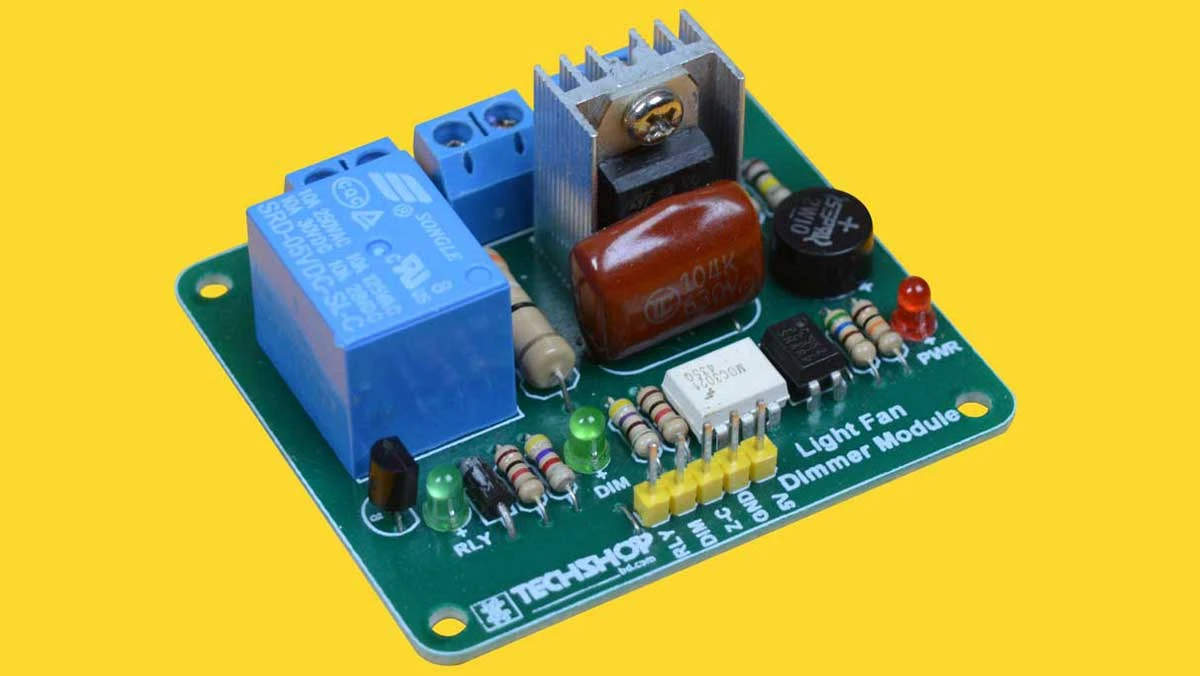

1 Channel Light Fan Dimmer Module

(0)

66 In Stock

৳425
Quantity
Total price: ৳425
Tax: incl.
Details description

Features

  • 2 Device Control Output (1 On/Off + 1 FAN Speed Control)
  • 220V AC INPUT Terminal: AC INPUT
  • Output Terminal Block: FAN and LIGHT
  • Operating Voltage: 5V
  • Power Indication: Red LED
  • Output Status: Green LED DIM, RLY
  • Relay output capacity: 220VAC / 10A
  • Triac output capacity: 220VAC / 16A
  • Input Terminal: 5V, GND, Z-C, DIM, RLY
  • Board Dimension: 56.50 x 51 mm
  • Mounting Holes: 50 x 44 mm
  • Independently Controlled Relay and Triac (Dimmer)
  • Relay current consumption at 5V is 72mA each when switched on
  • Back EMF protection



Bangla Tutorial: 1 Channel Light Fan Dimmer Module কিভাবে ব্যবহার করবো?

Video Tutorial: How to Make a Smartphone-Controlled AC Dimmer Using Arduino and TRIAC via Bluetooth



Connection with Arduino:
